Tesla FSD can handle an impressive amount of everyday driving, but there is still one part of the trip we wish felt more complete: pulling into the garage and parking.
After installing a recent FSD update, we started wondering whether we could give the vehicle enough visual information to recognize the inside of a garage as a legitimate parking space. The idea came from a Reddit experiment shared by the “Tech Godfather,” who used white markings extending from the driveway into the garage to help the vehicle identify the intended parking area. Naturally, we decided to see whether we could turn the idea into a removable DIY vinyl solution.
What followed was a lot of testing, a few failures, a trip to Walmart, and one surprisingly simple breakthrough.

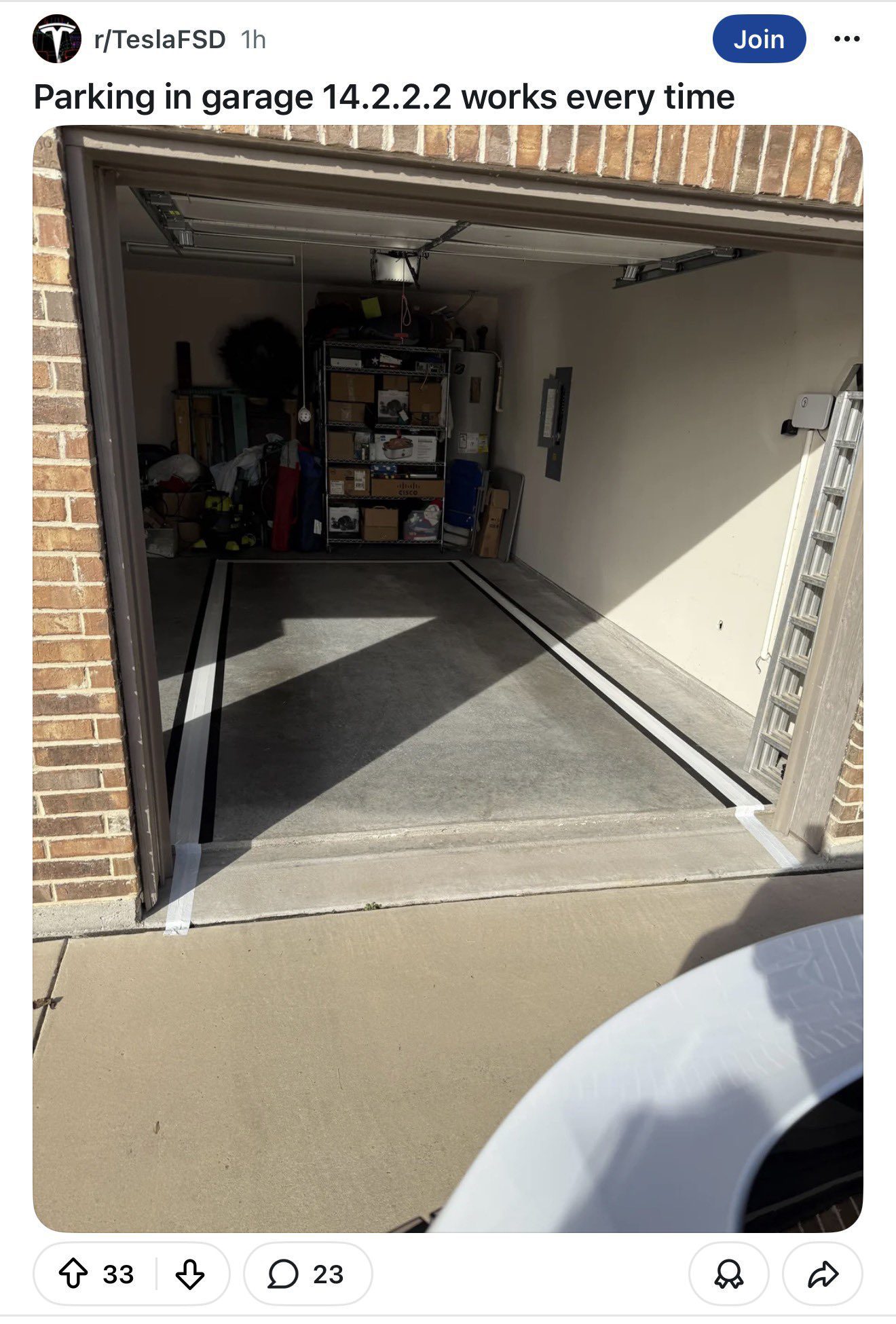

Post from TechGodFather
The Idea: Turn the Garage Into a Recognizable Parking Space
Tesla’s camera-based system regularly identifies marked spaces in commercial parking lots. When the vehicle recognizes one, it can display the space on the screen and potentially allow the driver to initiate Auto Park.
A typical residential garage is different. It may have walls, shelves, tools, shadows, and a concrete floor, but it usually does not have the painted lines or physical boundaries associated with a public parking space.
Our theory was simple:
What if we could make the inside of the garage look more like a conventional parking spot?
Instead of permanently painting the concrete, we used automotive-grade vinyl. Vinyl would allow us to prototype different widths, colors, layouts, and lengths without making a permanent change to the garage floor.
Building the First Vinyl Parking Guide
Our first design used a three-inch-wide white vinyl strip with black strips positioned alongside it. The goal was to create as much contrast as possible between the parking line and the surrounding concrete.
White was the obvious starting point because it closely resembles the markings found in most parking lots. The black border was added to make the white line stand out even more clearly to the cameras.
Before installing anything, we cleaned the section of the garage floor where the vinyl would be placed. A clean surface was important for adhesion, but it also reduced visual clutter around the parking guide.
We then ran the vinyl from inside the garage toward the driveway, using small overlaps where separate pieces met. Compared with painting the floor, vinyl was faster, removable, and much easier to revise as the experiment developed.
The line looked obvious to us. The real question was whether the Tesla could see it.
Test One: The Three-Inch Line Was Not Enough
The first test did not go as planned.
From the driver’s seat, we watched the vehicle visualization as we approached the garage. Even though the white line was easy for a person to see, it did not consistently appear on the Tesla display. Adding the black strips did not immediately turn the area into a recognized parking spot either.
We tried extending the white vinyl farther onto the driveway, hoping the additional length would give the cameras more time to detect and interpret the markings. That still did not produce a reliable parking-space prompt.
At that point, the three-inch design was officially a failed first prototype.
But the failure gave us a useful question to investigate: What does a real parking space have that our garage setup did not?
Studying a Real Parking Lot
To answer that question, we drove to a Walmart parking lot and studied the spaces that FSD recognized normally.
Several differences immediately stood out.
First, the painted parking lines were wider than our original vinyl strips. We estimated that many were approximately four inches wide. There was also substantially more open space around the lines than we had allowed in the garage.
The commercial parking lot provided other environmental clues as well: repeated rows of spaces, surrounding vehicles, curbs, islands, signs, and map data identifying the property as a parking lot.
Based on what we observed, we revised the vinyl design from three inches to approximately four inches wide. We also adjusted the spacing to make the garage layout more closely resemble a real parking space.
Test Two: Wider Lines Helped, but Recognition Was Incomplete
We recreated the setup at our warehouse using the wider white vinyl.
This time, we started seeing progress. Portions of the lines appeared in the vehicle visualization, which suggested that the cameras were detecting at least some of the markings.
That was an improvement, but the system still did not consistently interpret the full layout as an available parking space.
The experiment showed us that seeing a line and understanding a parking space are not necessarily the same thing. The vehicle appeared to need more context than two pieces of vinyl on a flat concrete surface.
Then we accidentally gave it exactly that.
The Breakthrough: Adding a Physical Parking Stop
During the warehouse test, we placed a box at the end of the vinyl parking space to imitate a curb or parking stop.

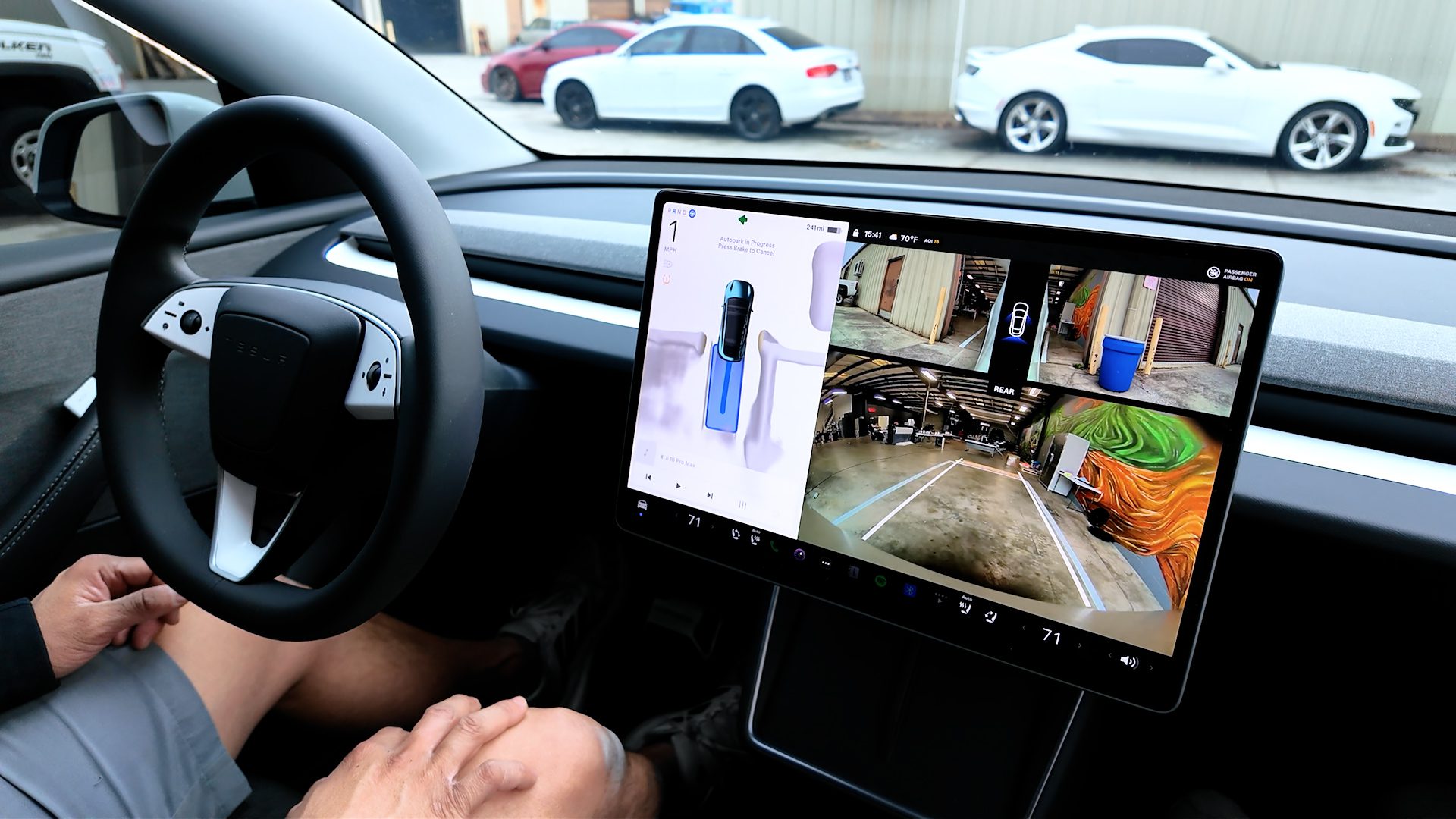

Almost immediately, the Auto Park option appeared.
That simple raised object seemed to provide a missing piece of visual information. The vehicle could see the wide white lines on either side and a physical endpoint at the front of the space. Together, those elements made the setup look much more like an actual parking spot.
Once Auto Park was activated, the Tesla pulled into the space and positioned itself neatly between the vinyl lines. The final alignment was impressively even—arguably better than some of our own parking attempts.
We were able to repeat the recognition when approaching the setup in the direction that gave the cameras a clear view of the lines and raised stopping point.
It was not a complete garage solution yet, but it proved the core concept: physical and visual garage markers can influence how the vehicle interprets the space.
Why Did the Parking Stop Make Such a Difference?
We cannot confirm exactly how Tesla’s system classified each object, but our best guess is that the raised parking stop added depth and a clear boundary.
The vinyl lines only existed on a flat surface. Depending on lighting, concrete color, glare, camera angle, and distance, those lines may not have provided enough information to establish where the parking space ended.
A parking stop creates a more recognizable three-dimensional feature. It may help communicate that:
- The area has two defined sides.
- The vehicle is approaching a contained space.
- There is a clear stopping point.
- The area resembles a conventional parking spot rather than a random section of driveway.
The result also supported something we noticed throughout the experiment: the closer we made the garage look like a conventional parking space, the more likely the Tesla was to recognize it.
What Appeared to Matter Most
Based on our testing, these factors seemed to make the biggest difference:
Wider white lines
The four-inch markings were more successful than the original three-inch design. They also more closely matched the parking spaces we studied.
Clear spacing
The car needed enough room between the markings to interpret them as the sides of a parking space – precisely 7’2″ wide.
A visible endpoint
The raised box or parking stop was the most important breakthrough. Flat vinyl alone did not consistently create enough context.
A clear approach
Recognition worked best when the vehicle approached from a direction that allowed the cameras to see the complete layout.
Environmental and map context
A commercial parking lot gives FSD much more information than a residential garage. The vehicle can reference the surrounding parking spaces, curbs, objects, and navigation context to better understand what it is looking at.
These observations come from a limited experiment and should not be treated as guaranteed specifications. Different garages, vehicles, camera positions, software versions, floor finishes, and lighting conditions may produce completely different results.
The Role of Navigation and Map Data
The original Reddit experiment also involved navigation data. The user reportedly updated the map information around the private driveway and then reset the saved home destination after the update appeared.
The theory is that navigation data may help the vehicle understand that the drivable route continues farther into the property, while the cameras provide the immediate visual information needed to navigate and park.
During our own test, we explored the available map-editing options and considered how a correctly mapped private driveway might support the physical garage markings. However, map edits should always represent real, accurate conditions.
Turning the Experiment Into a DIY Garage Kit
Once the parking stop made the difference, we began designing a more refined prototype.
The current concept includes:
- Removable four-inch vinyl parking lines
- A modular, interlocking 3D-printed parking stop
- A layout that can be adjusted for different garages
The parking stop does not necessarily need to be a heavy commercial concrete or rubber unit. For camera recognition, a lightweight visual reference may be enough—as long as it is stable, clearly visible, and never treated as something that can physically stop a moving vehicle.
Additional testing will be needed to determine whether the setup works consistently in different lighting conditions, garage sizes, floor colors, and vehicle orientations.
Is This a Finished Tesla FSD Garage-Parking Solution?
Not yet.
We successfully created a setup that the Tesla recognized as a parking space, and the vehicle parked accurately inside it. However, consistent garage entry involves more than identifying one parking spot.
A complete solution would need to work reliably when:
- Approaching from the street or driveway
- Operating under different lighting conditions
- Repeating the same maneuver on different days
- Starting from different positions and angles
Tesla may also improve native garage behavior through future software updates, making some or all of this experimentation unnecessary.
For now, this is best viewed as a proof of concept—not a dependable autonomous garage-parking system.
Final Thoughts
Our first three-inch vinyl design failed. Extending the lines onto the driveway did not solve the problem. Even the wider four-inch lines were not enough on their own.
Then we added a raised parking stop, and the Tesla recognized the area almost immediately.
That is what made this experiment so interesting. The solution was not simply making the markings brighter or longer. The vehicle appeared to need a combination of familiar visual cues: wide parking lines, appropriate spacing, and a clear physical endpoint.
We still have more testing and prototyping ahead of us, but we proved that a removable DIY garage guide can help make a residential space look more recognizable to Tesla’s parking system.
And, in the spirit of DIY Wrap Club, we are going to keep experimenting until we find out just how far the current technology can be pushed.
